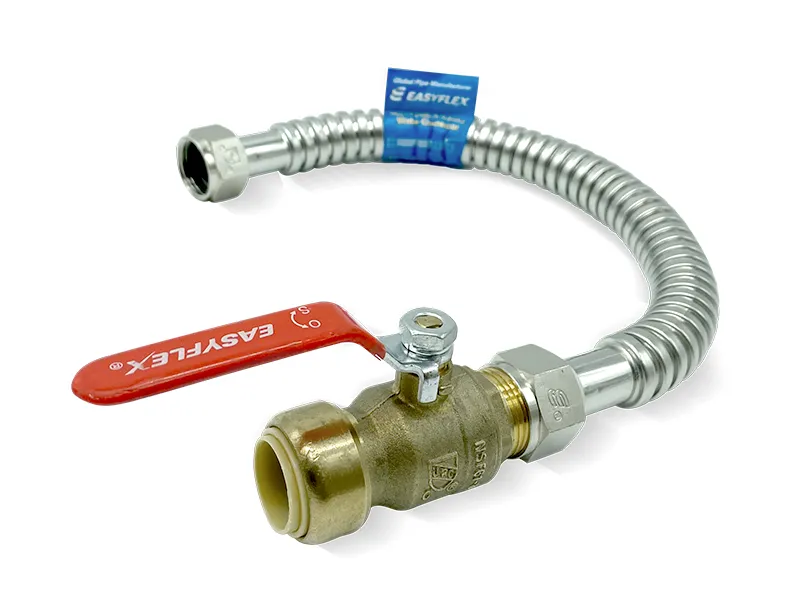

Introducing Easyflex 3/4″ ID Push Fit x FIP water heater connectors, available in three lengths: 15″, 18″, and 24″. Made to last, these connectors feature stainless-steel 304 tubing, chrome-plated brass connection nuts, and high-quality EPDM gaskets. The Push Fit design allows for easy installation without the need for any tools. Easyflex stands for convenience and reliability, and these push fit connectors embody both qualities. They are UPC certified and have undergone rigorous testing to ensure optimal performance.
| ID | Part # | Description | Qty/Box |
| 3/4″ | EFWC-034-SS-1050-15 | 3/4″ Push Fit x 3/4″ FIP, 15″ | 25 |
| 3/4″ | EFWC-034-SS-1050-18 | 3/4″ Push Fit x 3/4″ FIP, 18″ | 25 |
| 3/4″ | EFWC-034-SS-1050-24 | 3/4″ Push Fit x 3/4″ FIP, 24″ | 25 |
| Tubing | Stainless Steel 304 (ASTM A240) | ||||
| Tubing Thickness | 0.01″ and 0.012″ | ||||
| Fittings | Chrome-Plated Brass 3771 | ||||
| Gasket | High-Quality EPDM | ||||
| Lenghts Available | 15″, 18″, 24″ | ||||
| Size Available (ID) | 3/4″ | ||||
| Thread Standard | ASME B1.20.1 | ||||
| Working Pressure | Up to 125 psig | ||||
| Intermittent Impulse Pressure | Up to 180 psig | ||||
| Temperature Rating | -40° F to 180° F (-40° C to 82° C) | ||||
| Minimum Bend Radius | 2.5″ (Recommended) | ||||
